Pad Printing Machines
The Universal Series
Pad Printing Machines Redesigned for
Originally introduced in 2004, the Universal Series pad printing machines have continually evolved to deliver even greater efficiency and performance.
Because labor is the highest cost factor in pad printing, every Universal machine is engineered to maximize output, minimize downtime, and grow alongside your operation — ensuring long-term value and reliability.
Designed and built in Europe, the Universal Series represents the pinnacle of pad printing efficiency and quality, all while maintaining one of the lowest costs per print in the industry.
The TTN Universal Series pad printers are engineered to adapt and expand alongside your company’s evolving needs. This makes TTN an ideal solution not only for businesses new to pad printing, but also for experienced professionals seeking reliable, scalable performance.
Pad Printing Machinery Designed and Built With Customers in Mind
Designed, manufactured, assembled, and programmed entirely in-house, TTN maintains complete control over every stage of production.
This seamless integration ensures exceptional quality, consistency, and reliability in every machine we build.
TTN pad printing machines are renowned for their unmatched ease of use and precision engineering, delivering the ultimate pad printing experience from start to finish.
A New Interface
Our new interface is designed and programmed in-house by TTN. This touchscreen is intuitive with lightning-fast responses. Its interface offers the following:
- Native 7 Language Support (English, Spanish, French, Italian, German, Dutch, and Portuguese) (included), with the ability to easily add more languages as needed in the future
- Part Counter (programming included)
- Know your true output with our Production-Per-Hour Counter
- Double-Print Capability for Dark Substrates
- Optional Tape Cleaner Function with Automatic Settings
- Simple to use interface with items greyed out that are not offered in that stage of the menu
Keep That Pad Clean
The built-in optional tape cleaner is the perfect accessory to keep your printing perfect, while maintaining output and high productivity. Operators will appreciate this feature as the function is integrated into the control panel and can be easily initiated manually or can be programmed after a set number of cycles.
A Magnetic Attraction
Throw away clamps, screws, and holders. The world’s first magnetic cliché holder on an entry level pad printer. This allows operators to switch images in seconds. With the ability to quickly rotate the baseplate 180°, it can alternate between images in seconds whether on the same or a new plate.
Integrated Dryer
The new optional integrated pad and part dryer allows quick flow control including on/off operation. It can easily be moved out of the way or detached as needed. It can also greatly assist in preparing ink on the pad for printing items like glassware, where additional ink tackiness is desired.
Increased Durability
The contrasting blue and grey surfaces of the New Universal Series are powder coated to insure increased durability against cleaners and thinners, allowing your New Universal to stay cleaner longer and last longer than any other entry level machine in the market today.Â
Cleanroom Compliant for Medical Pad Printing
Our new Universal Series pad printing machine can be cleanroom compliant right out of the box for the perfect solution in medical applications.
All steel surfaces are powder coated
All aluminum parts are anodized
Easily upgrades to pads with a metal base making the entire machine cleanroom compliant
Universal Series Pad Printing Machine Lineup
$8,995.00

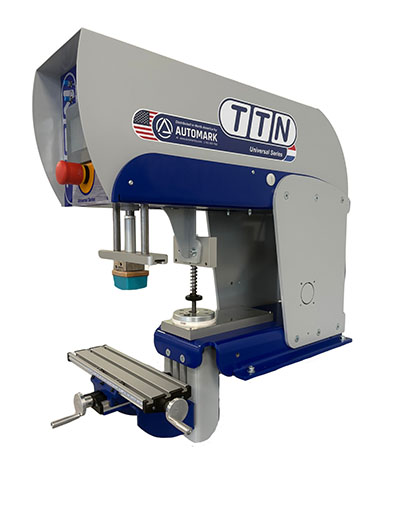

Universal 90
Starting at
$8,995
Â
- 90mm diameter ink cup with ceramic ring
- Max Printing Area: 80mm diameter
- 100x250mm baseplate
Universal 120
Starting at
$9,295
Â
- 120mm diameter ink cup with ceramic ring
- Max Printing Area: 110mm diameterÂ
- 150x300mm baseplate

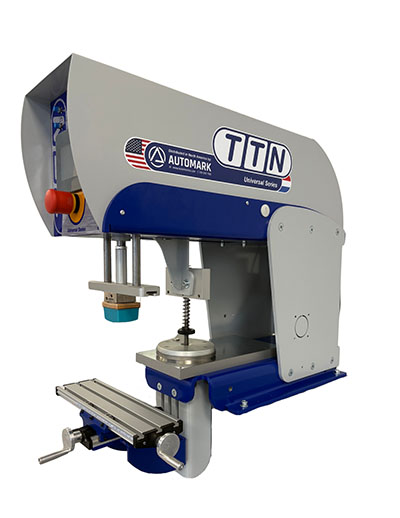

Universal 134
Starting at
$9,695
Â
- 134mm diameter ink cup with ceramic ring
- Max Printing Area: 124mm diameterÂ
- 150x300mm baseplate

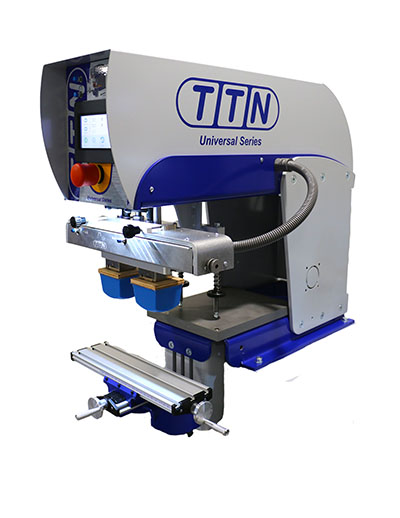

Universal 200 TC
Starting at
$11,995
Â
- Great for smaller items
- 2x90mm diameter ink cup with ceramic ring
- Max Printing Area: 2x80mm diameterÂ
- 200x250mm baseplate
- Double output with 2 at a time printing

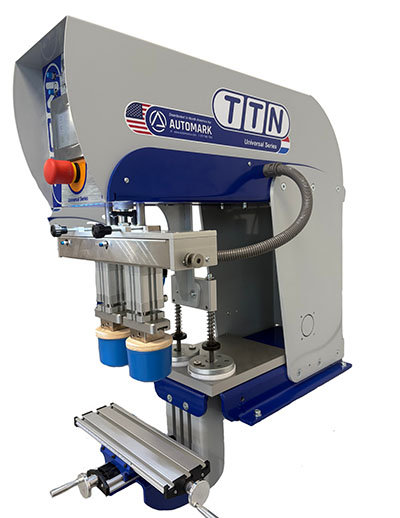

Universal 200 LTC
Starting at
$12,995
Â
- Perfect for larger items
- 2x90mm diameter ink cup with ceramic ring
- Max Printing Area:Â 2x80mm diameter printable area
- 200x250mm baseplate
- Double output with 2 at a time printing
Pedestal Options for Universal Series Pad Printing Machines
Table Pedestal
$1,795
This pedestal stand is the perfect companion for our new Universal Series pad printing machines.
It features hidden storage space conveniently sized for ink cans, tools, and manuals, keeping your workspace organized and efficient.
The pedestal securely mounts to a table, allowing TTN pad printers to be easily attached and ready for production.
Standard Pedestal
$3,395
This mounting stand is perfectly designed for our Universal Series pad printing machines, yet versatile enough to accommodate our entire line of TTN pad printers.
It features adjustable leveling feet for stability and ample, easily accessible storage to keep tools and supplies within reach.
Professional Pedestal
$4,795
This pedestal features an expanded XY table with a greater range of vertical adjustment than other models, allowing you to lower the table further when needed.
This added flexibility makes it easy to integrate additional fixtures, such as the XY Fixture with Rotational Adjustment (shown above), for precise micro-adjustments during setup or production.
Versatility Built-In
Versatility Built-In
The new Universal Series pad printing machines feature quick-change ink cups, giving you the flexibility to adapt to any job.
You’re no longer limited to a single ink cup size — switch between sizes and image formats in seconds.
Every model in the Universal Series is compatible with all ink cup sizes shown on the left, providing true versatility for any printing requirement.
Efficient Use
The Universal 200 Series (2-color model) offers exceptional versatility:
Print one item in two colors with precision and consistency.
Print one item in a single color on one side — ideal for smaller runs or larger products.
Print two items in a single color simultaneously, effectively doubling your production output.
Plus, the Universal 200 Series is designed for future expandability, allowing you to upgrade ink cups as your needs grow.
We even redesigned your initial impression of our shipment interior, now ensuring low transport costs, while keeping your machine safe and sound!
