What is ADA compliant braille height?

ADA compliant braille dot height is typically between 0.025 and 0.037 inches (0.6–0.9 mm).

What materials can UV braille printing be used on?

UV braille printing can be applied to plastic, metal, glass, acrylic, and coated surfaces.

Is UV printed braille durable?

Yes. UV printed braille is highly durable and resistant to wear, chemicals, and environmental exposure.

ADA COMPLIANT BRAILLE PRINTING

UV Braille Printers for ADA Compliant Signage

UV braille printers use layered UV ink technology to produce ADA compliant braille signage with precise and repeatable dot height. Print precise, durable braille on plastic, metal, and glass using industrial UV digital printers. No tooling, no engraving — just consistent production to ADA dimensional requirements when properly configured and validated.

✓ ADA Compliant Dot Height✓ Multi-Layer UV Technology✓ Works on Any Substrate

TECHNOLOGY OVERVIEW

What Is UV Braille Printing?

UV braille printing uses industrial flatbed UV digital printers to build raised braille dots directly onto a substrate using multiple passes of UV-curable ink. Each pass adds height until the dot meets ADA specifications — no engraving, no embossing, no tooling required.

0.025″

Minimum ADA Dot Height

0.059″

ADA Dot Base Diameter

100%

Dome-Shaped Dot Profile

SIMPLE 3-STEP PROCESS

How UV Printers Create ADA Compliant Braille

UV digital braille printing is a precise, repeatable process. The printer builds raised dots layer by layer using clear UV-curable ink, curing each pass instantly with an onboard UV lamp.

See UV Braille Printing in Action

Upload Artwork

Import your design files into the RIP software. No special braille translation needed beforehand.

Convert to Braille

Software automatically translates text to ADA compliant braille with correct height, spacing, and dome profile.

Print with UV Ink

The printer builds up layers of clear UV ink to create durable, rounded braille dots that cure instantly.

ADA STANDARDS

ADA Braille Compliance Requirements

The Americans with Disabilities Act specifies exact physical dimensions for tactile braille on signage. UV digital printers meet every requirement through software-controlled layering.

ADA Requirement	Specification	UV Printer Capability
Dot Height	0.025" – 0.037"	✓ Software controlled
Dot Base Diameter	0.059" – 0.063"	✓ Consistent per pass
Dot Shape	Domed (rounded top)	✓ Natural UV cure profile
Dot Spacing	0.090" center-to-center	✓ RIP software enforced

SIDE-BY-SIDE COMPARISON

Traditional Engraving vs. UV Digital Braille Printing

See how UV digital printing compares to conventional braille manufacturing methods across setup time, cost, flexibility, and compliance.

Feature	Traditional Engraving	UV Digital Printing
Setup Time	✗ High (tooling required)	✓ Zero (digital file)
Cost Per Part	✗ High	✓ Low
Design Flexibility	✗ Low	✓ High (instant changes)
ADA Compliance	~ Manual verification	✓ Software guaranteed
Substrate Variety	✗ Limited	✓ Plastic, Metal, Glass, Wood
Short Run Capability	✗ Not economical	✓ 1-piece minimum

SUBSTRATE COMPATIBILITY

Materials Compatible with UV Braille Printing

UV digital printers adhere to virtually any rigid or semi-rigid substrate, making them ideal for architectural signage, industrial labels, and consumer product marking.

■

Acrylic & Plastic

■

Aluminum & Metal

■

Glass & Ceramic

■

Wood & MDF

■

Coated Substrates

RECOMMENDED SYSTEMS

Best UV Braille Printers for ADA Signage

Automark recommends the Azon Edge and Azon Matrix flatbed UV printers for ADA braille production. Both systems deliver the layer precision and throughput required for compliant signage manufacturing.

Edge UV Printer

Compact UV flatbed printer designed for direct-to-product printing on small parts and promotional products.

Starting at $17,995

Pricing varies depending on configuration, ink options, and accessories.

Razor Hale

Mid-size UV flatbed printer for industrial part marking, product decoration, and medium-volume production.

Starting at $29,995

Pricing varies depending on configuration, ink options, and accessories.

Matrix UV

Large-format UV flatbed printers built for high-volume industrial marking and product decoration.

Starting at $49,995

Pricing varies depending on configuration, ink options, and accessories.

REAL WORLD APPLICATIONS

Where UV Braille Printing Is Used

From commercial buildings to healthcare facilities, UV braille printing serves any industry required to meet ADA tactile signage standards.

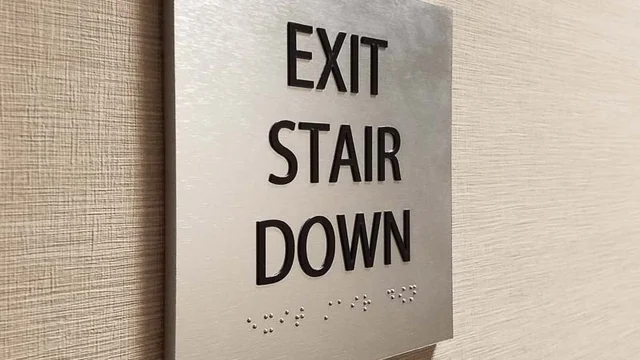

🏢 Commercial Buildings

Room ID signs, elevator panels, restroom signage, and wayfinding systems.

🏥 Healthcare Facilities

Hospital room numbers, pharmacy labels, and medical device identification.

🏠 Government & Education

Public buildings, schools, universities, and transit facilities.

🏭 Industrial & Manufacturing

Equipment labels, safety signage, and product identification panels.

FREQUENTLY ASKED QUESTIONS

Common Questions About UV Braille Printing

Can UV printers produce ADA compliant braille on any material?

Yes. UV digital printers can print ADA compliant braille on virtually any rigid or semi-rigid substrate, including acrylic, aluminum, glass, wood, and coated materials. The UV ink bonds directly to the surface without requiring special coatings or pre-treatment on most substrates.

How durable is UV printed braille compared to engraved braille?

UV printed braille is highly durable for interior signage applications. The cured UV ink is resistant to scratching, cleaning chemicals, and UV light. For outdoor or high-abrasion environments, a clear topcoat can be applied for additional protection.

What is the minimum production run for UV braille printing?

UV digital printing has no minimum run requirement. You can print a single sign as cost-effectively as a batch of 1,000, making it ideal for custom orders, replacements, and short-run projects where traditional tooling costs would be prohibitive.

Does UV braille printing meet ADA dot height requirements?

Yes. The ADA requires braille dots to be between 0.025" and 0.037" in height with a domed profile. UV printers achieve this through multiple controlled ink passes, with the RIP software managing layer count to hit the exact specification consistently across every print.

READY TO PRINT ADA COMPLIANT BRAILLE?

Get the Right UV Braille Printer for Your Operation

Speak with our team to determine the best UV digital printer based on your production volume, substrate type, part geometry, and ADA compliance requirements.

Automark provides UV digital printing systems, application expertise, and ongoing technical support to help sign manufacturers and print shops add ADA-compliant braille sign production as an in-house capability. Request a demonstration or consultation with our application specialists.
